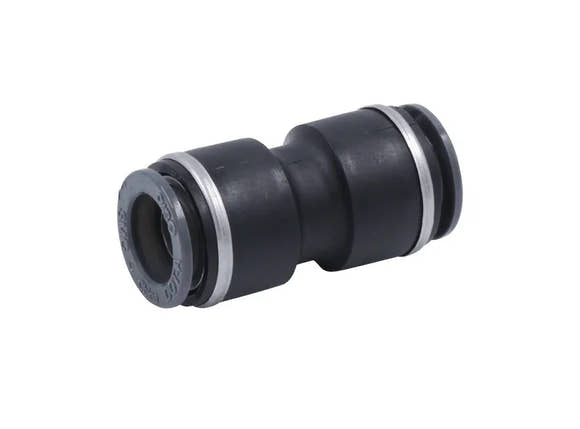

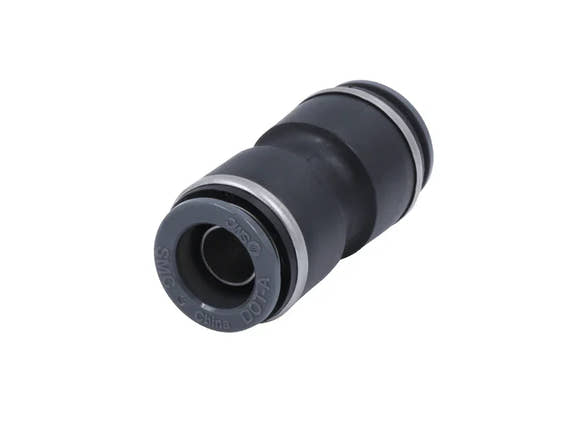

Quick Connect Air Fitting Kit ~ 5 Pack | 1/2 in. ~ Straight Union Connector | Phillips 12-95088 | FleetRun FR-BRKE406

$34.20

Same Day Shipping

Order The Truck Parts You Need Now and Pay Later With Our Financing Option Available

Order Now, Pay Later

Need Help With Parts?

(872) 240-4144

Hassle Free Returns

1 Year / 100,000 Mile Warranty

Part Number

  • FleetRun: FR-BRKE406

Cross Reference Part Number

  • Phillips: 12-95088
  • Automann: 177.11628 / 177.12C628
  • Sloan: S762PMT-8 / S762PMT8
  • Parker: 32PTC8 / 32PTC-8
  • Velvac: 16680
  • Tectran: QL1362-8 / QL13628
  • Tramec: KV2H12-00 / KV2H1200
  • Misc. Industry Part Number: VEL016680 / 12-95088 / C1862-8-8 / KV2H13-00 / A-SU-7

Specifications

  • Includes: 5 Fittings Per Kit
  • Dimensions: 1/2 in. Tube X 1/2 in. Tube
  • Straight Union Composite PTC Fitting
  • Maximum Operating Pressure 150 PSI
  • Works With SAE J844 Nylon Tubing
  • Meets DOT FMVSS71.106 & SAE J1131, J2494 Standards
  • -45º To 140º Temperature Range
  • Saves 75% Assembly Time Over Standard Compression Fittings
  • Full Flow Design
  • Ultraviolet & Vibration Resistant
  • 24% To 33% Weight Savings Over Brass
  • Positive Release Bushing For Ease Of Insertion & Removal Of Tubing
  • Thread Sealant Applied To All Male Pipe Threads To Reduce Installation Time Superior Tube Retention System & Seal Design For Holding & Side Load Retention

Straight Union Fittings or Quick Connect Air Fittings are used to connect the air, brake and ABS systems together and are universal across all applications including tractors / trucks, trailers / dollies etc. Our air fittings are made with quality in mind, meeting or exceeding OEM standards.
