Air Spring | Volvo / Mack | Volvo 20897204 / 20462934 | FleetRun FR-SPSN047

$120.33

Same Day Shipping

Order The Truck Parts You Need Now and Pay Later With Our Financing Option Available

Order Now, Pay Later

Need Help With Parts?

(872) 240-4144

Hassle Free Returns

1 Year / 100,000 Mile Warranty

Part Number

  • FleetRun: FR-SPSN047

Cross Reference Part Number

  • Volvo: 20897204 / 20462934
  • Mack: 57-QL-520-M
  • Hendrickson: 66349-002L / 66349002
  • Firestone: W26-358-9913
  • Automann: ABH66349-002
  • Meritor: FS9913 / E-14010

Specifications

  • Top Plate Hole/Stud Quantity: 2
  • Bottom Plate Hole/Stud Quantity: 1
  • Extended Height: 15.75 in.
  • Compressed Height: 5.89 in.
  • Top Plate Diameter: 6.38 in.
  • Bottom Plate Diameter: 6.50 in.
  • Air Supply: 1/4 in. Quick Connect Fitting

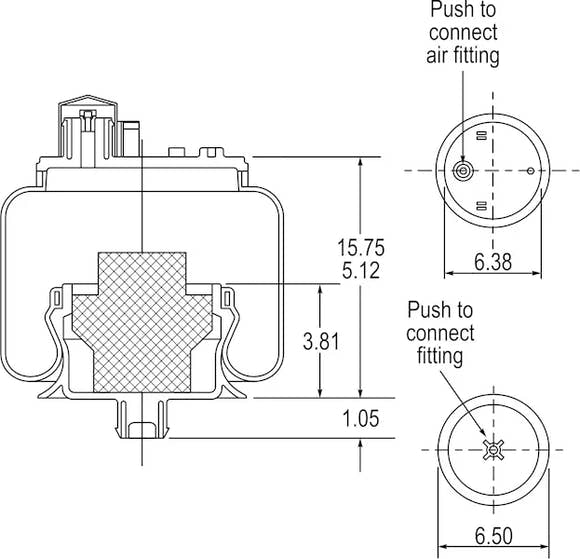

  • All Other Measurements Will Be Shown In The Product Image(s)
  • Air Spring is Secured By Quick Connect Clips On The Top Plate and Quick Connect Barbed Stud On The Bottom Plate

Air Springs can be universal across all applications or may be specific to that year, make and model and also are used in various suspension systems on tractors / trucks. Our air springs are made with quality in mind, meeting or exceeding OEM standards.

  • For other information such as tips and tricks or troubleshooting from technicians and shops visit our Shop Talk page from our menu
