Clutch Installation Kit | Eaton Fuller K-3600 | FleetRun FR-DVTN476

$201.61

Same Day Shipping

Order The Truck Parts You Need Now and Pay Later With Our Financing Option Available

Order Now, Pay Later

Need Help With Parts?

(872) 240-4144

Hassle Free Returns

6 Month / 50,000 Mile Warranty

Part Number

  • FleetRun: FR-DVTN476

Cross Reference Part Number

  • Eaton Fuller: K-3600
  • Power Products: RK3600
  • TRP: CK1910
  • Freightliner / Alliance: ABP N25 K3600

    Specifications

    • FREE SHIPPING
    • Compatible with Eaton Fuller FR Series Transmissions with a mechanical clutch fork and 2.00 inch hinged clutch brake
    • Input Shaft Teeth Quantity: 26
    • Input Shaft Spline Quantity: 10
    • Input Shaft Diameter: 2.00 inches
    • Input Shaft Pilot End Diameter: 1.18 inches
    • Input Shaft Overall Length: 12.44 inches
    • Clutch Brake Type: 2 Piece
    • Pilot Bearing Inside Diameter: 1.18 inches
    • Pilot Bearing Outside Diameter: 2.83 inches
    • Front Bearing Cover Bolt Hole Quantity: 6
    • Input Bearing Inside Diameter: 2.36 inches
    • Input Bearing Outside Diameter: 4.33 inches
    • Clutch Brake Inside Diameter: 2.00 inches
    • Clutch Brake Thickness: 0.38 inches
    • Clutch Release Fork Width: 8.00 inches
    • Clutch Release Fork Bolt CL: 6.50 inches
    • Clutch Release Fork Inside Tab: 4.89 inches

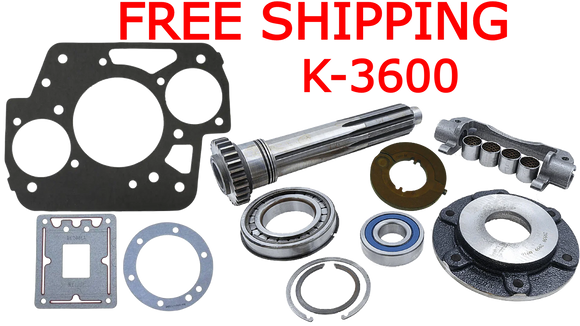

    Kit Breakdown

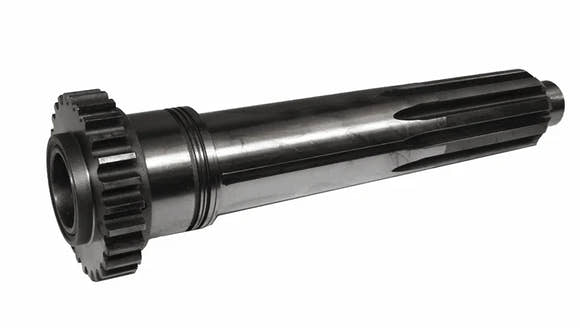

    • 1x - Input Shaft | Eaton Fuller S-2822 - FeetRun FR-DVTN911

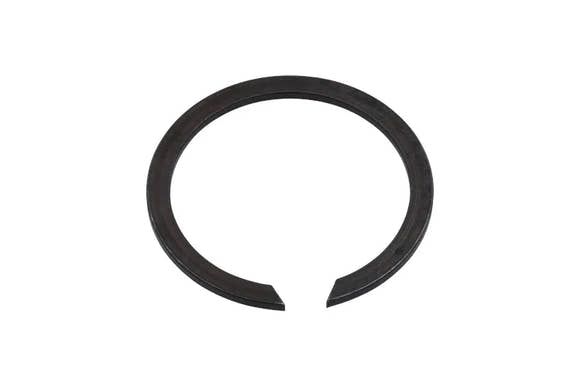

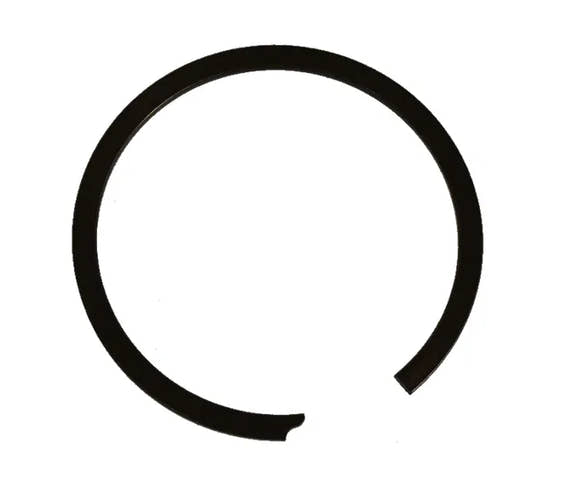

    • 1x - Snap Ring | Eaton Fuller 4303362 - FleetRun FR-DVTN948
    • 1x - Snap Ring | Eaton Fuller 16980 - FleetRun FR-DVTN063

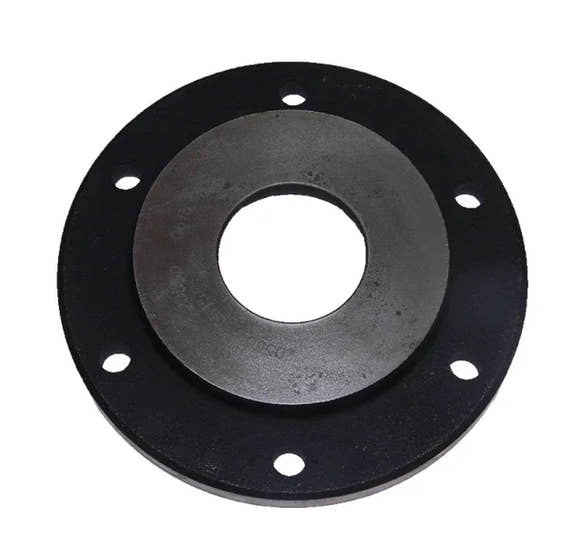

    • 1x - Front Bearing Cover | Eaton Fuller 20550 - FleetRun FR-DVTN312

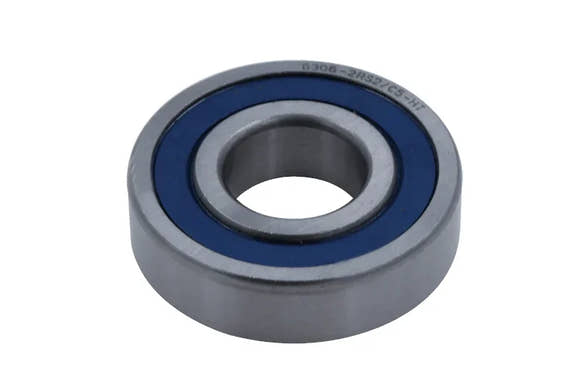

    • 1x - Pilot Bearing | Eaton Fuller 5566505 - FleetRun FR-DVTN421

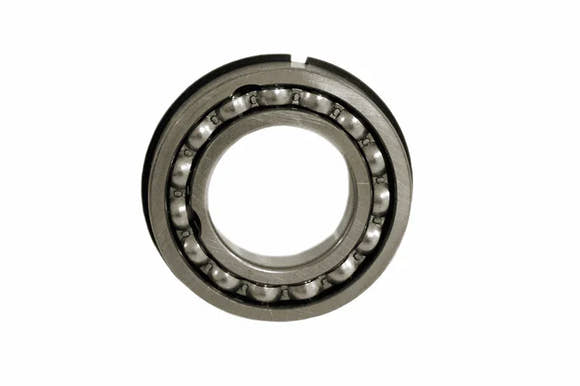

    • 1x - Cylindrical Ball Bearing | Eaton Fuller 4301417 - FleetRun FR-DVTN966

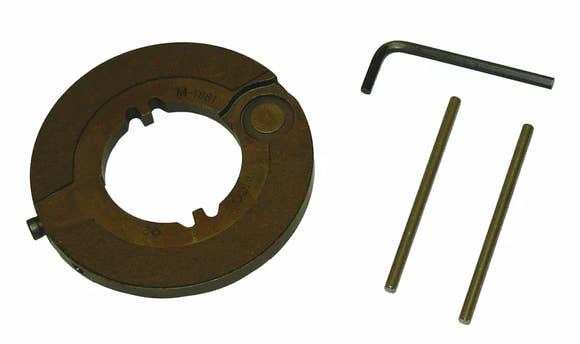

    • 1x - Clutch Brake | Eaton Fuller 85541 - FleetRun FR-DVTN475

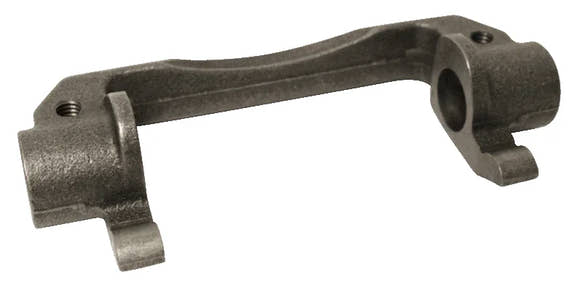

    • 1x - Clutch Release Fork | Eaton Fuller 85533 / Spicer 105C-137 - FleetRun FR-DVTN440
    • 1x - Clutch Fork Bushing Kit - 4 Pack | Eaton Fuller 12815 - FleetRun FR-DVTN761

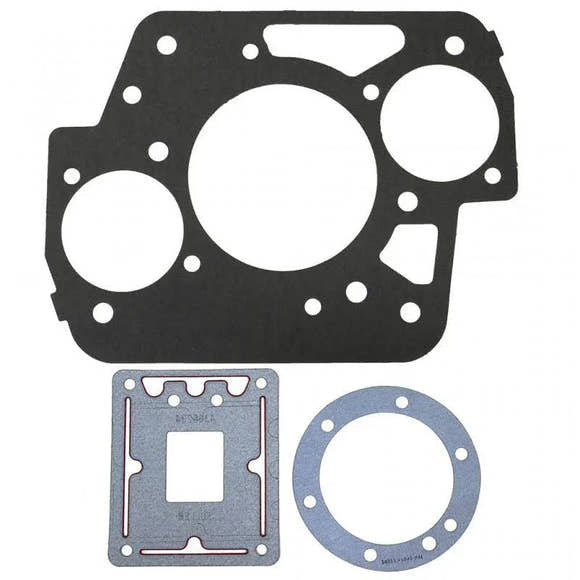

    • 1x - Gasket Kit | Eaton Fuller K-3453 - FleetRun FR-DVTN330

    Please note: this is an aftermarket part, the use of other manufacturer's names, part numbers or trademarks is for informational purposes only.

    Please verify OEM part numbers before purchasing, FleetRun assumes no liability related to product use and fitment.

    Looking for a reliable and complete clutch installation kit for your semi truck's Eaton Fuller FR Series manual transmission? Look no further than FleetRun FR-DVTN476! Our high-quality kit includes everything you need for a smooth installation, replacing the OEM Eaton Fuller K-3600 clutch installation kit.

    Compatible with Eaton Fuller FR series transmissions with a mechanical clutch fork and 2.00 inch hinged clutch brake, this clutch install kit is the perfect choice for Volvo, Freightliner, Peterbilt, Kenworth, and International big rigs.

    Our clutch install kit features a range of premium components, including an input shaft, snap rings, front bearing cover, pilot bearing, cylindrical ball bearing, clutch brake, clutch release fork, clutch housing gaskets, clutch housing gasket, and cross shaft bushings. Our kit includes more parts than the OEM kit, so you can be sure that all necessary components are included in one complete package. With free shipping included, you can get everything you need without breaking the bank. Our bearing cover engineered with oil return grooves to ensure optimal lubrication for the input shaft, resulting in a smoother clutch brake surface.

    Don't settle for a subpar clutch installation kit - choose FleetRun FR-DVTN476 for a top-notch installation every time. Our advanced shift tower and clutch housing gaskets with a beaded surface are specially designed to eliminate leak paths and ensure smoother shifts.

    Our revolutionary shaft design eliminates gear rattle, and each kit includes a long-lasting high-temperature flywheel pilot bearing featuring Viton™ seals for enhanced durability. We use high-temperature grease to ensure that all components can withstand the most demanding conditions and smoother shifting.

    With the increased quantity and improved specifications, our kit is designed to last longer and withstand wear and tear better than the OEM kit. You'll save both time and money by choosing FleetRun FR-DVTN476. Order now and experience the difference that FleetRun quality can make for your semi truck.

    • 023-002-043
    • For other information such as tips and tricks or troubleshooting from technicians and shops visit our Shop Talk page from our menu
