FleetRun | Fuller K-3762 Clutch Install Kit | Eaton Fuller K-3762 | FleetRun FR-DVTN703

$201.82

In Stock!

6 Month Warranty

Premium Aftermarket

30 Day Returns

Looking For OEM?

Call (872) 240-4144

Part Number

  • FleetRun: FR-DVTN703

Cross Reference Part Number

  • Eaton Fuller: K-3762
  • PAI: 900664
  • Freightliner / Alliance: ABP N25 K3762

    Specifications

    • FREE SHIPPING
    • Compatible with Fuller FR Series Severe Duty PTO Applications with a mechanical clutch fork and a 2.00 inch 1 piece clutch brake
    • Revolutionary Shaft Design to Eliminate Gear Rattle
    • Advanced Shift Tower and Clutch Housing Gaskets with Beaded Surface to Eliminate Leakage
    • Incorporates Newly Engineered Front Bearing Cover for a Smoother Clutch Brake Surface with Input Shaft Oil Return Grooves to Ensure Optimal Lubrication
    • Each Kit includes a Long-Lasting High-Temperature Flywheel Pilot Bearing featuring Viton™ Seals for Enhanced Durability
    • Input Shaft Teeth Quantity: 18
    • Input Shaft Spline Quantity: 10
    • Input Shaft Diameter: 2.00 inches
    • Input Shaft Pilot End Diameter: 1.18 inches
    • Clutch Brake Type: 2 Piece
    • Pilot Bearing Inside Diameter: 1.18 inches
    • Pilot Bearing Outside Diameter: 2.83 inches
    • Front Bearing Cover Bolt Hole Quantity: 6
    • Input Bearing Inside Diameter: 2.36 inches
    • Input Bearing Outside Diameter: 4.33 inches
    • Clutch Brake Inside Diameter: 2.00 inches
    • Clutch Brake Thickness: 0.38 inches
    • Clutch Release Fork Width: 8.00 inches
    • Clutch Release Fork Bolt CL: 6.50 inches
    • Clutch Release Fork Inside Tab: 4.89 inches

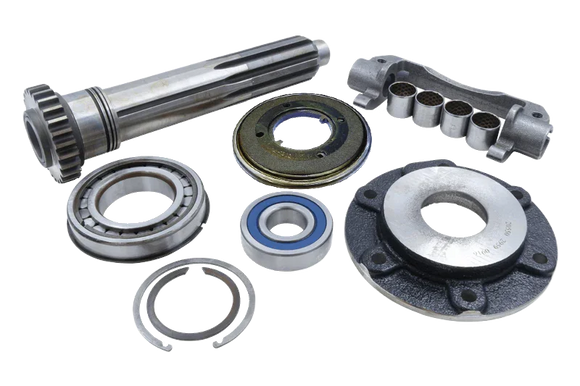

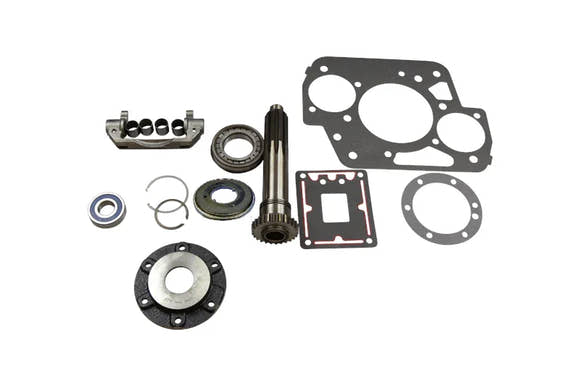

    Kit Breakdown

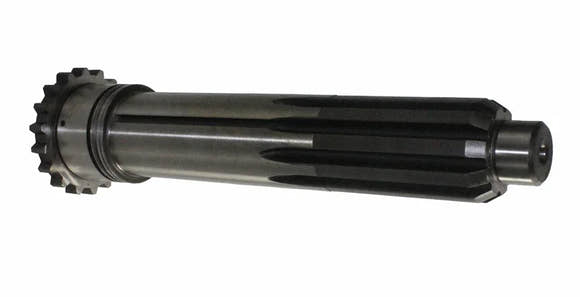

    • 1x - Input Shaft | Eaton Fuller S-1659 - FeetRun FR-DVTN519

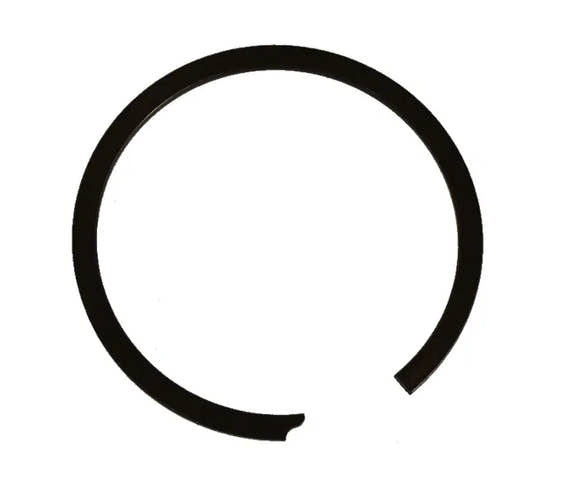

    • 1x - Snap Ring | Eaton Fuller 14750 - FleetRun FR-DVTN596

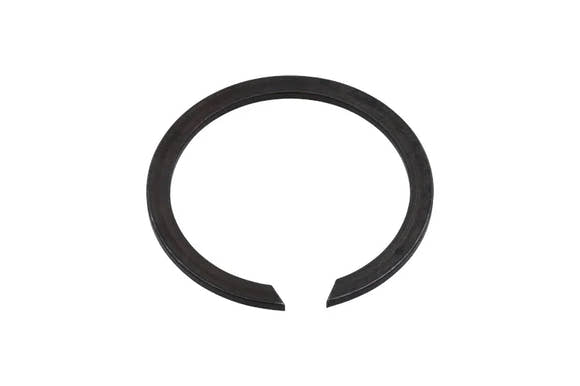

    • 1x - Snap Ring | Eaton Fuller 16980 - FleetRun FR-DVTN063

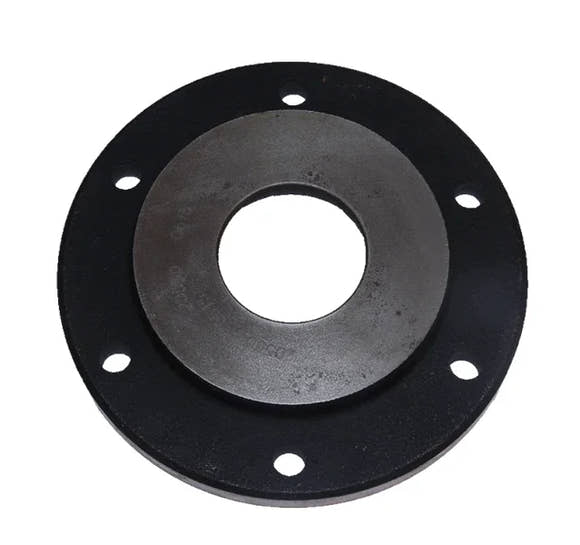

    • 1x - Front Bearing Cover | Eaton Fuller 20550 - FleetRun FR-DVTN312

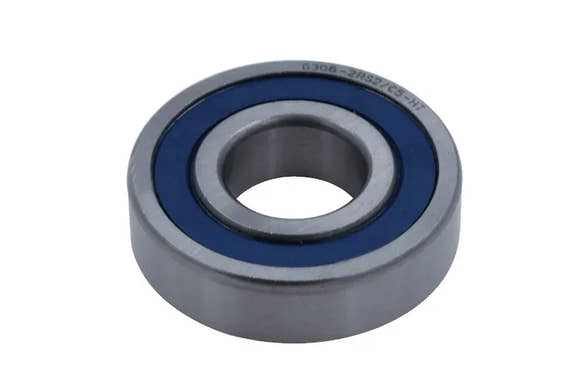

    • 1x - Pilot Bearing | Eaton Fuller 5566505 - FleetRun FR-DVTN421

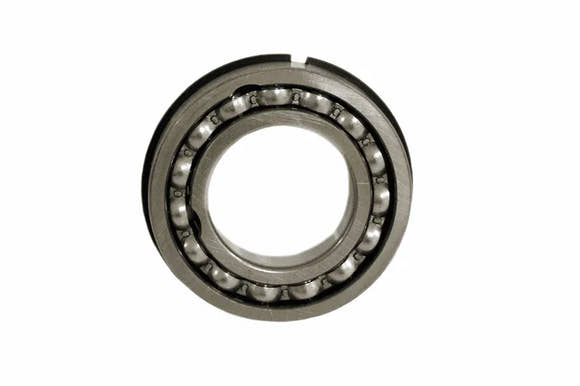

    • 1x - Cylindrical Ball Bearing | Eaton Fuller 4301417 - FleetRun FR-DVTN966

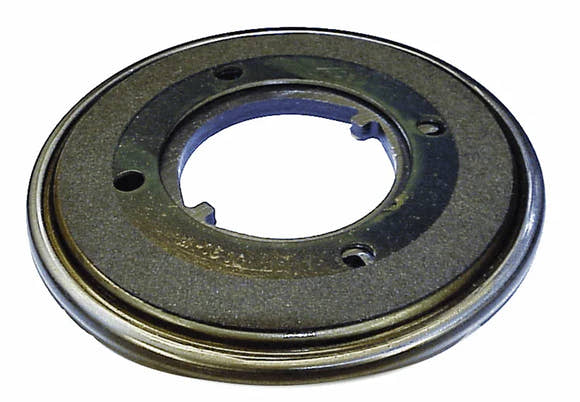

    • 1x - Clutch Brake | Eaton Fuller 85535 - FleetRun FR-DVTN039
    • 1x - Clutch Release Fork | Eaton Fuller 85533 / Spicer 105C-137 - FleetRun FR-DVTN440
    • 1x - Clutch Fork Bushing Kit - 4 Pack | Eaton Fuller 12815 - FleetRun FR-DVTN761

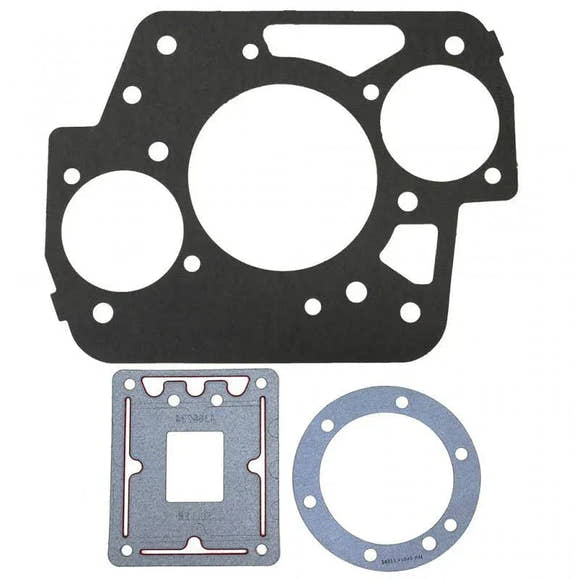

    • 1x - Gasket Kit | Eaton Fuller K-3453 - FleetRun FR-DVTN330
    Not What You're Looking For? Check Out These Parts Overview VMRS Code Replacement & Troubleshooting California Proposition 65 WARNING

    Attention all semi truck owners and operators! Keep your Volvo, Freightliner, Kenworth, or Peterbilt running smoothly with our OEM Quality replacement parts. Introducing the Fuller K-3762 Clutch Install Kit by FleetRun, also known as the Eaton Fuller K-3762. This kit is perfect for those with Fuller FR Series Severe Duty PTO Applications, featuring a mechanical clutch fork and a 2.00 inch 1 piece clutch brake.

    Experience the benefits of our revolutionary shaft design that eliminates gear rattle, and advanced shift tower and clutch housing gaskets with beaded surface to eliminate leakage. With our newly engineered front bearing cover, you'll enjoy a smoother clutch brake surface with input shaft oil return grooves to ensure optimal lubrication.

    Our clutch install kit features a range of premium components, including an input shaft, snap rings, front bearing cover, pilot bearing, cylindrical ball bearing, clutch brake, clutch release fork, clutch housing gaskets, clutch housing gasket, and cross shaft bushings. Our kit includes more parts than the OEM kit, so you can be sure that all necessary components are included in one complete package. With free shipping included, you can get everything you need without breaking the bank. Our bearing cover engineered with oil return grooves to ensure optimal lubrication for the input shaft, resulting in a smoother clutch brake surface.

    Don't settle for a subpar clutch installation kit - choose FleetRun FR-DVTN476 for a top-notch installation every time. Our advanced shift tower and clutch housing gaskets with a beaded surface are specially designed to eliminate leak paths and ensure smoother shifts.

    Our revolutionary shaft design eliminates gear rattle, and each kit includes a long-lasting high-temperature flywheel pilot bearing featuring Viton™ seals for enhanced durability. We use high-temperature grease to ensure that all components can withstand the most demanding conditions and smoother shifting.

    • 023-002-043
    • For other information such as tips and tricks or troubleshooting from technicians and shops visit our Shop Talk page from our menu
    This product may contain chemicals known to the State of California to cause cancer. - www.P65Warnings.ca.gov
