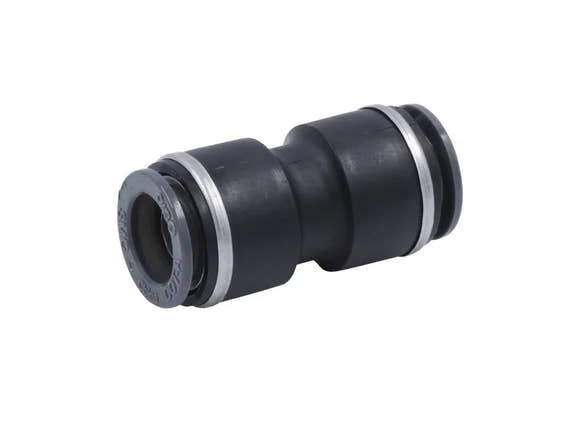

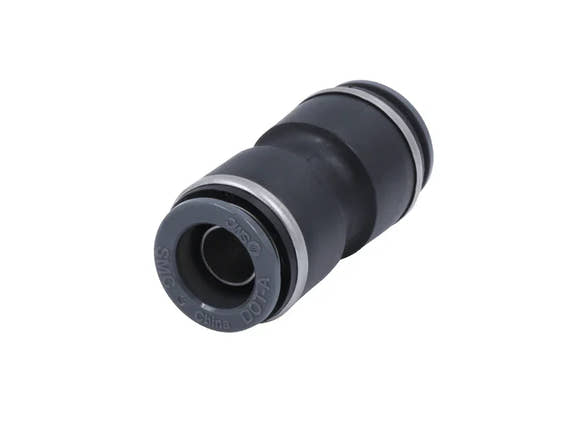

Quick Connect Fitting Kit ~ 5 Pack | 3/8 in. ~ Straight Union Connector | Phillips 12-95066 | FleetRun FR-BRKE404

Quick Connect Fitting Kit ~ 5 Pack | 3/8 in. ~ Straight Union Connector | Phillips 12-95066 | FleetRun FR-BRKE404

Name: Quick Connect Fitting Kit ~ 5 Pack | 3/8 in. ~ Straight Union Connector | Phillips 12-95066 | FleetRun FR-BRKE404
Brand: FleetRun
SKU: S-24404
Price: 23.3 USD
Availability: InStock

$23.30 Save $-23.30

Same Day Shipping

Order The Truck Parts You Need Now and Pay Later With Our Financing Option Available

Order Now, Pay Later

Need Help With Parts?

(872) 240-4144

Hassle Free Returns

1 Year / 100,000 Mile Warranty

Part Number

FleetRun: FR-BRKE404

Cross Reference Part Number

Phillips: 12-95066
Automann: 177.11626 / 177.12C626
Sloan: KV2H1100 / S762PMT-6 / S762PMT6
Parker: 171PMT86 / 32PTC-6 / 32PTC6
Tectran: QL1362-6 / QL13626
Tramec: KV2H11-00 / KV2H1100
Freightliner / Alliance: POP3 44042
Misc. Industry Part Number: 12-95066 / KV2H11-00 / C1862-6-6 / A-SU-5

Specifications

Includes: 5 Fittings Per Kit
Dimensions: 3/8 in. Tube x 3/8 in. Tube
Straight Union Composite PTC Fitting
Maximum Operating Pressure 150 PSI
Works With SAE J844 Nylon Tubing
Meets DOT FMVSS71.106 & SAE J1131, J2494 Standards
-45º To 140º Temperature Range
Saves 75% Assembly Time Over Standard Compression Fittings
Full Flow Design
Ultraviolet & Vibration Resistant
24% To 33% Weight Savings Over Brass
Positive Release Bushing For Ease Of Insertion & Removal Of Tubing
Thread Sealant Applied To All Male Pipe Threads To Reduce Installation Time Superior Tube Retention System & Seal Design For Holding & Side Load Retention
