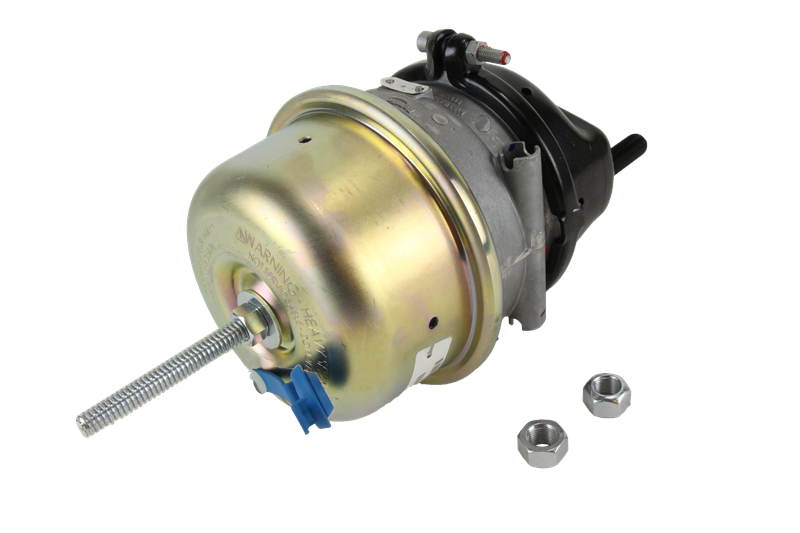

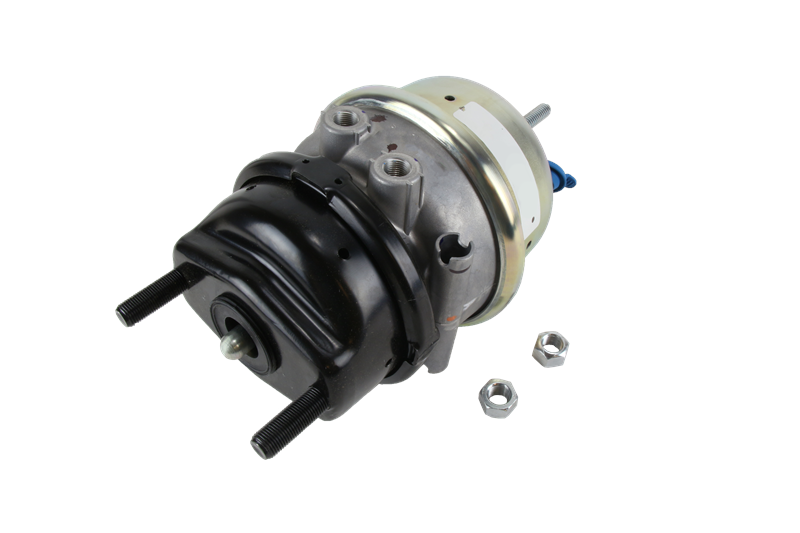

T18/24 Air Disc Brake Chamber | Bendix K132352 - Haldex GC1824D | FleetRun FR-BRKE874


Same Day Shipping

Order The Truck Parts You Need Now and Pay Later With Our Financing Option Available

Order Now, Pay Later

Need Help With Parts?

(872) 240-4144

Hassle Free Returns

6 Month / 50,000 Mile Warranty

Part Number

  • FleetRun: FR-BRKE874

Cross Reference Part Number

  • Bendix: K132352 / K043329 / K026451 / 803154 / 5020489 / K025670 / 802756 / 5018436
  • Haldex: GC1824D / 1351824001 / 1351824002 / 1351824003
  • Meritor: 1824HTND2-3628 / 1824TND2H
  • Wabco: 9253470070
  • Automann: 179.SB1824DB


  • Application: Air Disc Brake
  • Spring Brake Chamber: Type 24
  • Service Brake Chamber: Type 18
  • Stroke: 2.25 inches / 57mm
  • 3/8"-18 NPTF Ports
  • Spring Chamber: Permanently Sealed For Safety
  • Stud Thread Size: M16 x 1.5
  • Stud Length: 4.75 inches / 120.70mm

What's Included

  • Release Tool: Bendix 800921
  • Dust Plug: Bendix K034202
  • Clamp Ring Kit: Bendix K090235
  • Diaphragm Kit: Bendix K052484
  • Bellows Kit: Bendix K090594

Please note: this is an aftermarket part, the use of other manufacturer's names, part numbers or trademarks is for informational purposes only.

Please verify OEM part numbers before purchasing, FleetRun assumes no liability related to product use and fitment.

 Looking for top-quality aftermarket and OEM air disc brake parts for your big rig or semi truck? Look no further than FleetRun's FR-BRKE874 T18/24 Air Disc Brake Chamber. With cross-reference part numbers from industry-leading brands like Bendix, Haldex, Meritor, Wabco, and Automann, this brake chamber is built to last and withstand the most extreme conditions.

With a stroke of 2.25 inches/57mm and 3/8"-18 NPTF ports, this brake chamber is a perfect fit for your Volvo, Peterbilt, Kenworth, or Freightliner. The spring chamber is permanently sealed for safety and the stud thread size is M16 x 1.5 with a stud length of 4.75 inches/120.70mm. Plus, with the included release tool, dust plug, clamp ring kit, diaphragm kit, and bellows kit, you'll have everything you need to get the job done right.

But that's not all - FleetRun also offers other brake chamber piggyback kits, including the Type 30/30 2.50 in. Standard/Short Stroke and Type 30/30 3.00 in. Long Stroke, both with cross-reference part numbers from Bendix and Haldex.

Don't let faulty air brakes put you and your cargo at risk. Upgrade to the FleetRun FR-BRKE874 T18/24 Air Disc Brake Chamber today and experience the safety and reliability you deserve on the road. And if you need any additional information or troubleshooting tips, be sure to check out our Shop Talk page. Plus, enjoy FREE SHIPPING on your order!

  • 013-013-048
  • For other information such as tips and tricks or troubleshooting from technicians and shops visit our Shop Talk page from our menu
