Part Number

  • FleetRun: FR-DVTN029

Cross Reference Part Number

  • Eaton Fuller: K-3600-1
  • Power Products: RK3600-1
  • TRP: CK1910-1


    • Compatible with Eaton Fuller FR Series Transmissions with a mechanical clutch fork and 2.00 inch 1 Piece clutch brake
    • Input Shaft Teeth Quantity: 26
    • Input Shaft Spline Quantity: 10
    • Input Shaft Diameter: 2.00 inches
    • Input Shaft Pilot End Diameter: 1.18 inches
    • Input Shaft Overall Length: 12.44 inches
    • Clutch Brake Type: 2 Piece
    • Pilot Bearing Inside Diameter: 1.18 inches
    • Pilot Bearing Outside Diameter: 2.83 inches
    • Front Bearing Cover Bolt Hole Quantity: 6
    • Input Bearing Inside Diameter: 2.36 inches
    • Input Bearing Outside Diameter: 4.33 inches
    • Clutch Brake Inside Diameter: 2.00 inches
    • Clutch Brake Thickness: 0.38 inches
    • Clutch Release Fork Width: 8.00 inches
    • Clutch Release Fork Bolt CL: 6.50 inches
    • Clutch Release Fork Inside Tab: 4.89 inches
    • 2 Piece Hinged Clutch Brake Install Kit: Clutch Installation Kit | Eaton Fuller K-3600 | FleetRun FR-DVTN476

    Kit Breakdown

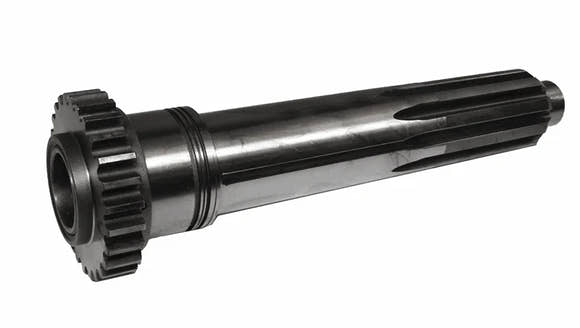

    • 1x - Input Shaft | Eaton Fuller S-2822 - FeetRun FR-DVTN911

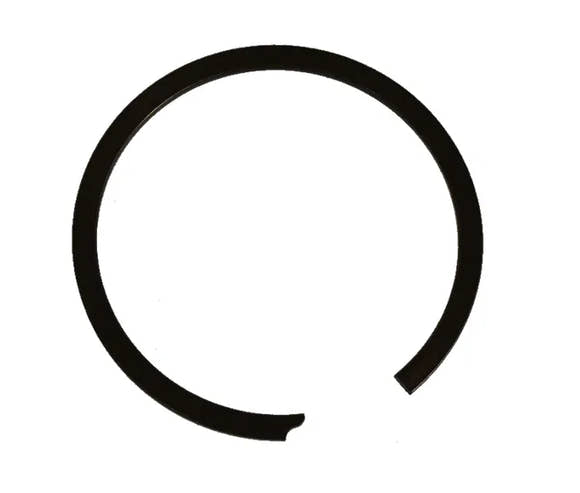

    • 1x - Snap Ring | Eaton Fuller 4303362 - FleetRun FR-DVTN948

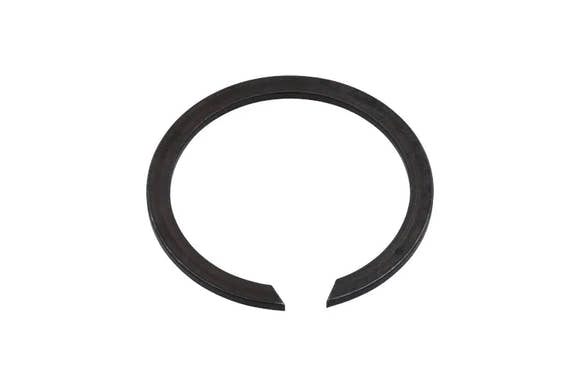

    • 1x - Snap Ring | Eaton Fuller 16980 - FleetRun FR-DVTN063

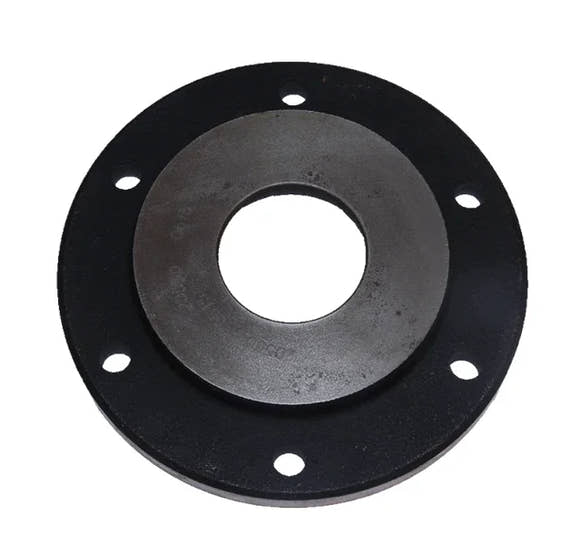

    • 1x - Front Bearing Cover | Eaton Fuller 20550 - FleetRun FR-DVTN312

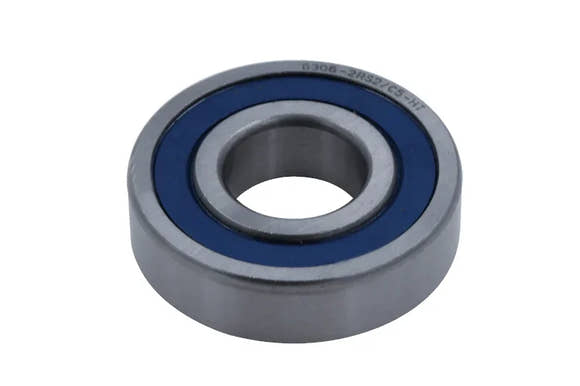

    • 1x - Pilot Bearing | Eaton Fuller 5566505 - FleetRun FR-DVTN421

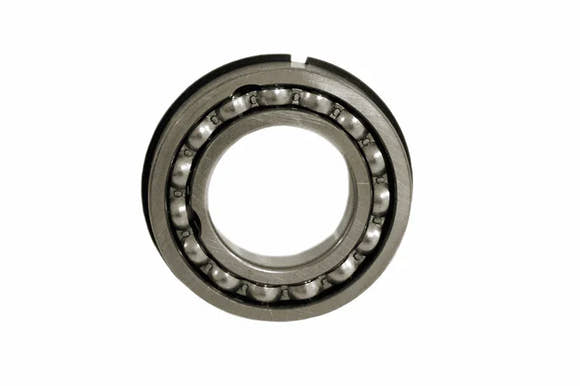

    • 1x - Cylindrical Ball Bearing | Eaton Fuller 4301417 - FleetRun FR-DVTN966

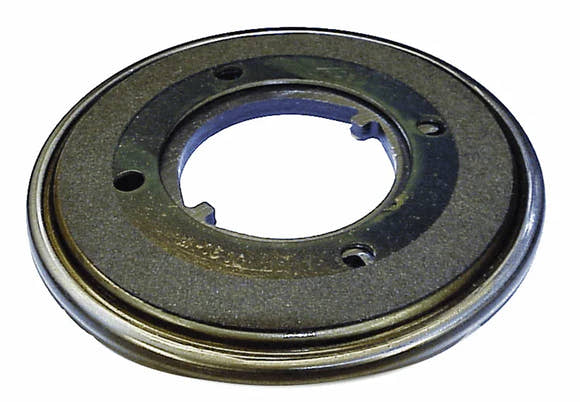

    • 1x - Clutch Brake | Eaton Fuller 85535 - FleetRun FR-DVTN039

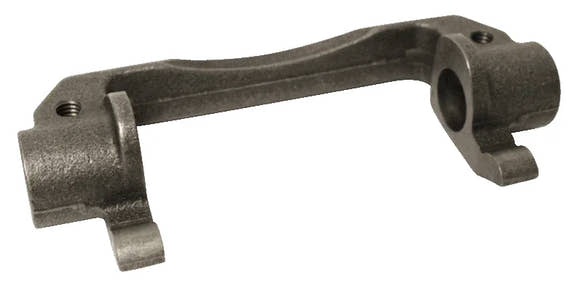

    • 1x - Clutch Release Fork | Eaton Fuller 85533 / Spicer 105C-137 - FleetRun FR-DVTN440
    • 1x - Clutch Fork Bushing Kit - 4 Pack | Eaton Fuller 12815 - FleetRun FR-DVTN761

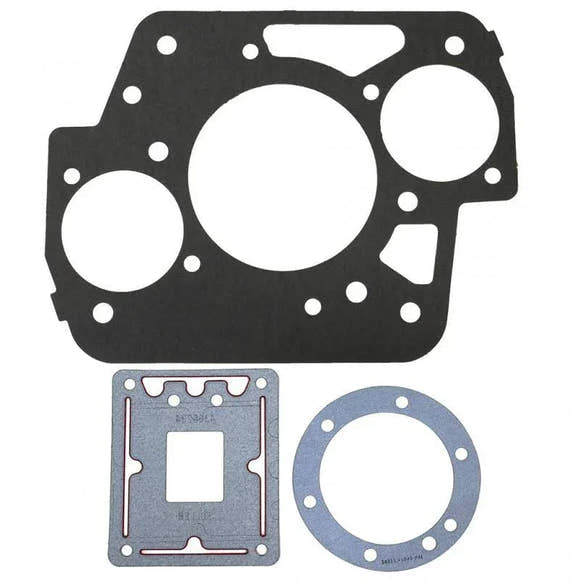

    • 1x - Gasket Kit | Eaton Fuller K-3453 - FleetRun FR-DVTN330

    Please note: this is an aftermarket part, the use of other manufacturer's names, part numbers or trademarks is for informational purposes only.

    Please verify OEM part numbers before purchasing, FleetRun assumes no liability related to product use and fitment.

    Looking for a reliable clutch installation kit for your semi truck's Eaton Fuller FR Series manual transmission? Look no further than FleetRun FR-DVTN029! Our kit includes everything you need for a smooth installation, replacing the OEM Eaton Fuller K-3600-1 clutch installation kit.

    Compatible with Eaton Fuller FR series transmissions with a mechanical clutch fork and 2.00 inch 1 piece clutch brake, this clutch installation kit is the perfect choice for Volvo, Freightliner, Peterbilt, Kenworth, and International big rigs.

    Our clutch installation kit includes a variety of high-quality parts, including an input shaft, snap rings, front bearing cover, pilot bearing, cylindrical ball bearing, clutch brake, clutch release fork, clutch housing gasket, and a gasket kit. Our advanced shift tower and clutch housing gaskets with beaded surface eliminate leak paths, ensuring a smoother shifting experience, along with a bearing cover engineered extend the life of the internals and for smoother shifts.

    Our newly engineered front bearing cover includes oil return grooves to ensure optimal lubrication for the input shaft, resulting in a smoother clutch brake surface. We also incorporate cross shaft bushings to increase quantity of parts in the kit and improve the life and wear of your clutch.

    Each kit includes a long-lasting high-temperature flywheel pilot bearing featuring Viton™ seals for enhanced durability. With a little bit of high temperature grease, you can be sure that your clutch installation will perform at its best even under heavy loading.

    Don't settle for a subpar clutch installation kit - choose FleetRun FR-DVTN029 for a top-notch installation every time. And if you're looking for other clutch assemblies, we've got you covered with our heavy-duty options like the Eaton 108925-20AM/308925-20 and more. Visit our Shop Talk page for tips and troubleshooting from our expert technicians and shops.

    Order now and experience the difference that FleetRun quality can make for your semi truck.
